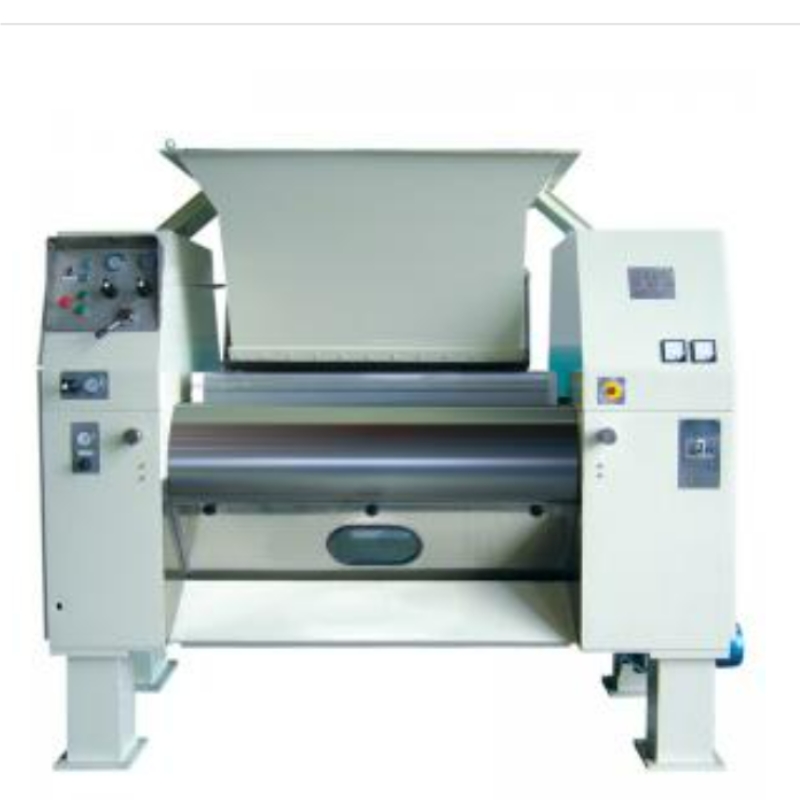

2-Roll Refiner is for pre-processing chocolate, filling and coating masses to a precise particle size and is the essential step to a top quality end product.
Features
Variable Roll Speeds
Customized Roll Width
Homogenously Masses Milling
Easy Operate
Easy Clean
Stainless Steel Cover Optional
Technical Parameters
| Model | TRM900 | TRM1300 | TRM1800 |
| Roll Diameter (mm) | 400 | 400 | 400 |
| Roll Working Width (mm) | 900 | 1300 | 1800 |
| Roll Speed (RPM) | High Speed Roll | 258 | 258 |
| Low Speed Roll | 118 | 118 | 118 |
| Motor Power (kW) | 45 | 55 | 75 |
| Production Capacity (L/h) | 2500-4500 | 3500-6500 | 5500-8500 |
| Hydraulic Pressure (Mpa) | 6.3 | 6.3 | 6.3 |
| Hydraulic Power (kW) | 2.2 | 2.2 | 2.2 |
| Weight (kg) | 4500 | 5000 | 5800 |
| Overall Size (mm) | 2478*2780*3128 | 2878*2850*3218 | 3378*2880*3218 |
